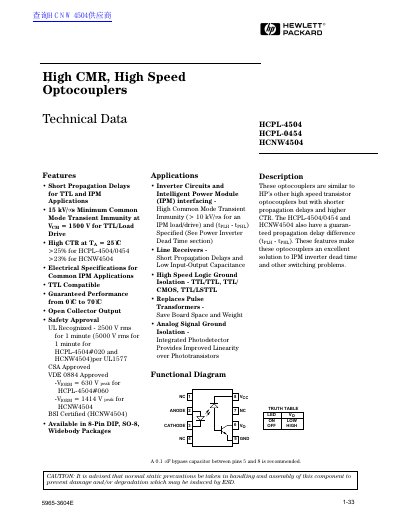

This document is the datasheet of HCPL-4504, HCPL-0454, HCNW4504. It mainly introduces the features of the product, such as short propagation delay, high common mode transient immunity, high CTR, TTL compatibility, safety approval, application scenarios, etc.
This document provides technical specifications and application information for the HCPL-4504, HCPL-0454, and HCNW4504 optocouplers. These devices are designed as single-channel diode-transistor optocouplers with high speed capabilities suitable for TTL and Intelligent Power Module (IPM) applications.
| Minimum Common Mode Transient Immunity (TTL/Load Drive) | >15 kV/us at Vcem = 1500 V |
|---|---|
| CTR (HCPL-4504/0454) | >25% at Ta = 25°C |
| CTR (HCNW4504) | >23% at Ta = 25°C |
| Operating Temperature Range | -55 to 100 °C (HCPL-4504) |
| Package Types | 8-Pin DIP, SO-8, Widebody Packages |
The devices offer a 15 kV/us minimum common mode transient immunity at Vcem = 1500 V for TTL/Load Drive.
The devices provide a minimum of 15 kV/us common mode transient immunity when driving TTL loads at 1500 V.
These optocouplers are guaranteed to perform from 0°C to 70°C.
The maximum supply voltage between pins 8 and 5 is 30 V.
