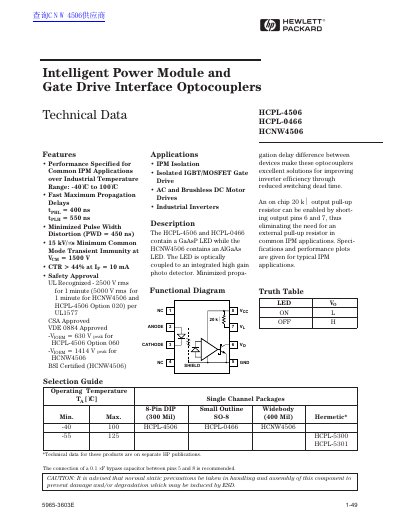

Hewlett-Packard HCPL-4506/HCPL-0466/HCNW4506 Optocoupler Technical Data

This data sheet describes the performance of 1-49H Intelligent Power Module and Gate Drive Interface Optocouplers

Brand: HP
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 14
File format: PDF
File size: 236 KB
Published: 02 August, 2012
Updated: 30 September, 2023
MD5 checksum: F8164B562C6E477985064631169BFB71
PDF: Hewlett-Packard HCPL-4506/HCPL-0466/HCNW4506 Optocoupler Technical Data PDF

About this manual

This document provides technical specifications for the HCPL-4506, HCPL-0466, and HCNW4506 optocouplers, which are designed for Intelligent Power Module (IPM) applications. These devices feature minimized pulse width distortion and fast propagation delays, making them suitable for isolated IGBT/MOSFET gate drives in industrial inverters and motor drives.

What's inside

Features
Applications
Description
Ordering Information
Package Outline Drawings
Regulatory Information
Insulation and Safety Related Specifications
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Specifications

Specifications

Operating Temperature Range	-40°C to 100°C
Current Transfer Ratio (CTR)	> 44%
Safety Approval	UL Recognized - 2500 V rms
Internal Pull-up Resistor	20 kΩ
Output Power Dissipation	100 mW

Frequently asked questions

What are the applications for these optocouplers?

They are designed for IPM isolation, isolated IGBT/MOSFET gate drive, AC and brushless DC motor drives, and industrial inverters.

What is the difference between the HCPL-4506 and HCNW4506?

The HCPL-4506 and HCPL-0466 contain a GaAsP LED, while the HCNW4506 contains an AlGaAs LED.

Is an external pull-up resistor required?

No, a 20 kΩ output pull-up resistor can be enabled by shorting output pins 6 and 7, eliminating the need for an external resistor.
