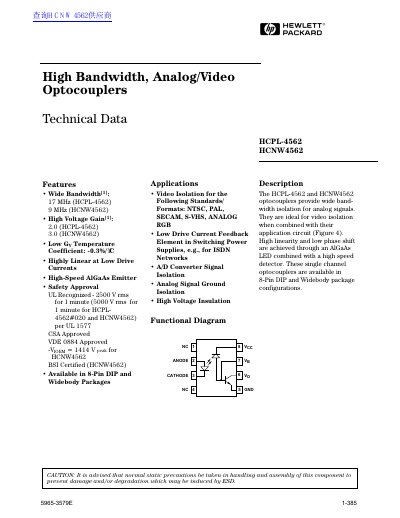

This document describes the technical data and features of the 1-385 H High Bandwidth, Analog/Video Optocouplers. The product features wide bandwidth, high voltage gain, low GV temperature coefficient, high linearity at low drive currents, and high-speed AlGaAs emitter. It is suitable for video isolation for various standards/formats, low drive current feedback element in switching power supplies, A/D converter signal isolation, analog signal ground isolation, and high voltage insulation applications.
This document provides technical specifications for the Hewlett-Packard HCPL-4562 and HCNW4562 single channel optocouplers. These devices are designed to provide wide bandwidth isolation for analog signals, specifically optimized for video applications such as NTSC, PAL, SECAM, S-VHS, and Analog RGB formats.
| Bandwidth (HCPL-4562) | 17 MHz |
|---|---|
| Bandwidth (HCNW4562) | 9 MHz |
| Voltage Gain (HCPL-4562) | 2.0 |
| Voltage Gain (HCNW4562) | 3.0 |
| Temperature Coefficient | -0.3%/°C |
| Operating Temperature Range | -40 to 85 °C |
They support NTSC, PAL, SECAM, S-VHS, and ANALOG RGB formats.
The maximum operating temperature is 85 °C.
