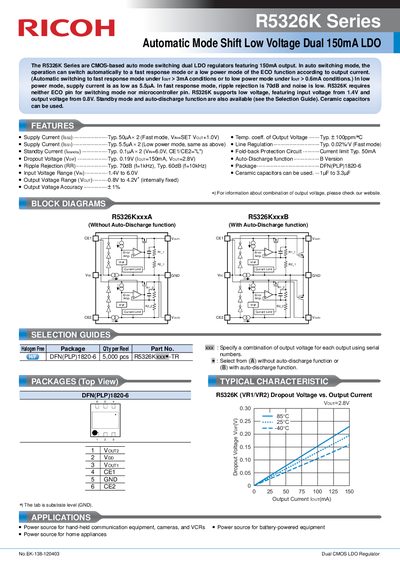

The R5326K series automatic mode shift low voltage dual 150mA LDO is a CMOS-based auto mode switching dual LDO regulator with 150mA output. In auto switching mode, the operation can switch automatically to a fast response mode or a low power mode of the ECO function according to output current. (Automatic switching to fast response mode under IOUT > 3mA conditions or to low power mode under IOUT > 0.6mA conditions.) In low power mode, supply current is as low as 5.5μA. In fast response mode, ripple rejection is 70dB and noise is low. R5326K requires neither ECO pin for switching mode nor microcontroller pin. R5326K supports low voltage, featuring input voltage from 1.4V and output voltage from 0.8V. Standby mode and auto-discharge function are also available (see the Selection Guide). Ceramic capacitors can be used.
The R5326K Series are CMOS-based auto mode switching dual LDO regulators featuring 150mA output. The device automatically switches operation to a fast response mode or a low power ECO function mode based on the output current, requiring neither an ECO pin nor a microcontroller pin for this functionality.
| Output Current (per channel) | 150mA |
|---|---|
| Supply Current (Fast mode) | Typ. 50µA x 2 |
| Supply Current (Low power mode) | Typ. 5.5µA x 2 |
| Ripple Rejection (Fast mode, f=1kHz) | Typ. 70dB |
| Dropout Voltage | Typ. 0.19V |
| Input Voltage Range | 1.4V to 6.0V |
| Output Voltage Range | 0.8V to 4.2V |
| Package Type | DFN(PLP)1820-6 |
No, the R5326K requires neither an ECO pin nor a microcontroller pin.
The supply current is typically 5.5µA per channel.
Yes, the datasheet states that ceramic capacitors can be used.
