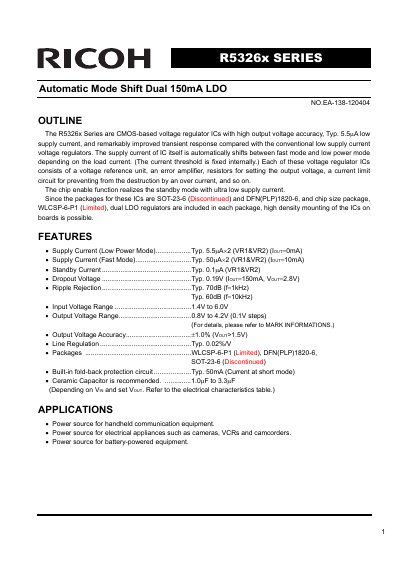

Ricoh R5326x Series Automatic Mode Shift Dual 150mA LDO Datasheet

The R5326x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, Typ. 5.5μA low supply current, and remarkably improved transient response compared with the conventional low supply current voltage regulators.

Brand: Ricoh
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 27
File format: PDF
File size: 489 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 5FEC0FD68A08CB4AA9542A2AB3C30C33
PDF: Ricoh R5326x Series Automatic Mode Shift Dual 150mA LDO Datasheet PDF

About this manual

The R5326x Series are CMOS-based voltage regulator ICs featuring high output voltage accuracy and improved transient response. The supply current automatically shifts between fast mode and low power mode depending on the load current, with a fixed internal threshold. These ICs include a chip enable function for ultra-low standby current and are available in SOT-23-6, DFN(PLP)1820-6, and WLCSP-6-P1 packages.

What's inside

Outline
Features
Applications
Selection Guide
Pin Configurations
Absolute Maximum Ratings
Electrical Characteristics
Typical Application
Technical Notes
Test Circuits

Specifications

Standby Current	Typ. 0.1nA
Dropout Voltage	Typ. 0.19V
Ripple Rejection	Typ. 70dB
Output Current	150 mA
Operating Temperature Range	-40 to 85 °C

Frequently asked questions

What is the dropout voltage at 150mA load?

The dropout voltage is typically 0.19V when the load current is 150mA.

What is the ripple rejection at 1kHz?

The ripple rejection is typically 70dB at a frequency of 1kHz.

What packages are available for the R5326x Series?

The series is available in SOT-23-6, DFN(PLP)1820-6, and WLCSP-6-P1 packages.
