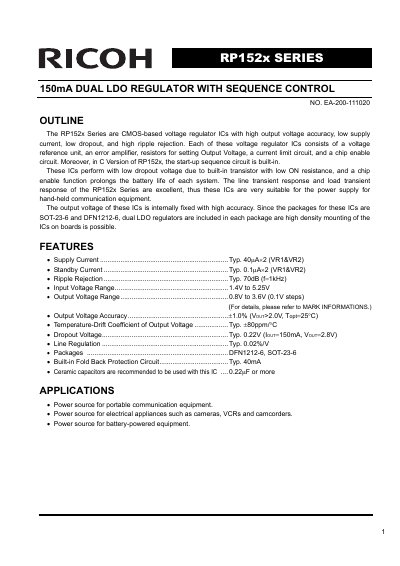

The RP152x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low dropout, and high ripple rejection. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting Output Voltage, a current limit circuit, and a chip enable circuit. Moreover, in C Version of RP152x, the start-up sequence circuit is built-in. These ICs perform with low dropout voltage due to built-in transistor with low ON resistance, and a chip enable function prolongs the battery life of each system. The line transient response and load transient response of the RP152x Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. The output voltage of these ICs is internally fixed with high accuracy. Since the packages for these ICs are SOT-23-6 and DFN1212-6, dual LDO regulators are included in each package are high density mounting of the ICs on boards is possible.
The RP152x Series consists of CMOS-based voltage regulator ICs designed for high output voltage accuracy, low supply current, and low dropout. Each package contains a dual LDO regulator, suitable for high-density mounting on boards. The series includes a built-in start-up sequence circuit in the C Version, ensuring VR2 starts up 100µs after VR1.
| Standby Current | Typ. 0.1µA x 2 |
|---|---|
| Ripple Rejection | Typ. 70dB |
| Input Voltage Range | 1.4V to 5.25V |
| Output Voltage Range | 0.8V to 3.6V |
| Output Voltage Accuracy | 1.0% |
| Packages | DFN1212-6, SOT-23-6 |
| Output Current | 150mA |
| Operating Temperature Range | -40 to 85 °C |
Ceramic capacitors of 0.22uF or more are recommended for use with this IC.
Yes, the start-up sequence circuit is built-in in the C Version of the RP152x.
The absolute maximum input voltage rating is 6.0V.
