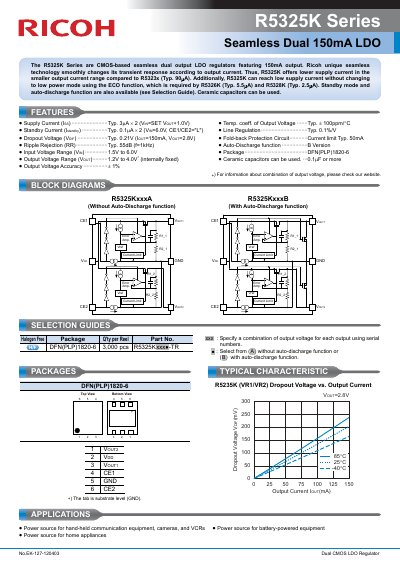

The R5325K Series are CMOS-based seamless dual output LDO regulators featuring 150mA output. Ricoh unique seamless technology smoothly changes its transient response according to output current. Thus, R5325K offers lower supply current in the smaller output current range compared to R5323x (Typ. 90μA). Additionally, R5325K can reach low supply current without changing to low power mode using the ECO function, which is required by R5326K (Typ. 5.5μA) and R5328K (Typ. 2.5μA). Standby mode and auto-discharge function are also available (see Selection Guide). Ceramic capacitors can be used.
The R5325K Series are CMOS-based seamless dual output LDO regulators featuring 150mA output. Ricoh unique seamless technology smoothly changes its transient response according to output current, offering lower supply current in the smaller output current range compared to other models like the R5323x.
Additionally, the series can reach low supply current without changing to low power mode using the ECO function. Standby mode and auto-discharge function are also available depending on the version (A or B). Ceramic capacitors with 0.1F or more can be used.
| Output Current | 150mA |
|---|---|
| Supply Current (Iss) | Typ. 3nA x 2 |
| Temp. coeff. of Output Voltage | Typ. +100ppm/°C |
| Standby Current (Istanaby) | Typ. 0.1pA x 2 |
| Line Regulation | yp. 0.1%/V |
| Dropout Voltage (Voir) | Typ. 0.21V |
| Current limit | Typ. 507A |
| Ripple Rejection (RR) | Typ. 55dB |
| Input Voltage Range (Vin) | -5V to 6.0V |
| Output Voltage Range (Vou) | 1.2V to 4.0V |
| Output Voltage Accuracy | -£1% |
| Package | DFN(PLP)1820-6 |
Yes, ceramic capacitors can be used.
The requirement is 0.1F or more.
