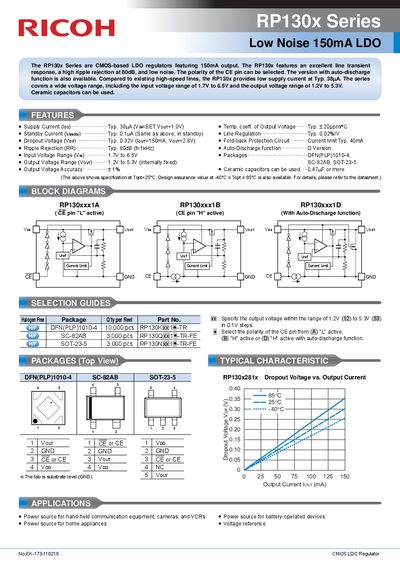

The RP130x Series are CMOS-based LDO regulators featuring 150mA output. The RP130x features an excellent line transient response, a high ripple rejection at 80dB, and low noise. The polarity of the CE pin can be selected. The version with auto-discharge function is also available. Compared to existing high-speed lines, the RP130x provides low supply current at Typ. 38μA. The series covers a wide voltage range, including the input voltage range of 1.7V to 6.5V and the output voltage range of 1.2V to 5.3V. Ceramic capacitors can be used.
The RP130x Series are CMOS-based LDO regulators designed to provide a 150mA output current. Key features include excellent line transient response, high ripple rejection at 80dB, and low noise operation. The series supports a wide input voltage range of 1.7V to 6.5V and an output voltage range of 1.2V to 5.3V. The polarity of the CE pin can be selected, and versions with an auto-discharge function are available. These regulators are suitable for applications requiring low supply current, typically 38.4µA.
| Output Current | 150mA |
|---|---|
| Ripple Rejection | Typ. 80dB |
| Supply Current | Typ. 38.4µA |
| Input Voltage Range | 1.7V to 6.5V |
| Output Voltage Range | 1.2V to 5.3V |
| Packages | DFN(PLP)1010-4, SC-82AB, SOT-23-5 |
The typical supply current is 38.4µA when the input voltage is set to Vout + 1.0V.
Yes, ceramic capacitors can be used, provided they are 0.47µF or more.
The RP130x series provides a high ripple rejection of typically 80dB at 1kHz.
