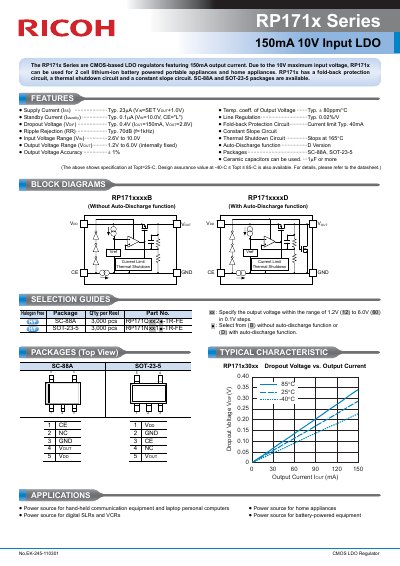

The RP171x Series are CMOS-based LDO regulators featuring 150mA output current. Due to the 10V maximum input voltage, RP171x can be used for 2 cell lithium-ion battery powered portable appliances and home appliances. RP171x has a fold-back protection circuit, a thermal shutdown circuit and a constant slope circuit. SC-88A and SOT-23-5 packages are available.
The RP171x Series are CMOS-based Low Dropout (LDO) regulators designed to provide a maximum output current of 150mA. These devices feature a 10V maximum input voltage, making them suitable for powering 2-cell lithium-ion battery applications in portable and home appliances. Key protection features include a fold-back current limit circuit, a thermal shutdown circuit that activates at 165°C, and a constant slope circuit to prevent oscillation.
| Output Current | 150mA |
|---|---|
| Input Voltage Range | 2.6V to 10.0V |
| Output Voltage Range | 1.2V to 6.0V |
| Standby Current | Typ. 23nA |
| Dropout Voltage | Typ. 0.4V |
| Thermal Shutdown | 165°C |
| Fold-back Protection | Typ. 40mA |
| Ripple Rejection | Typ. 70dB |
| Available Packages | SC-88A, SOT-23-5 |
The maximum input voltage is 10.0V.
Yes, it includes a thermal shutdown circuit that stops operation at 165°C.
