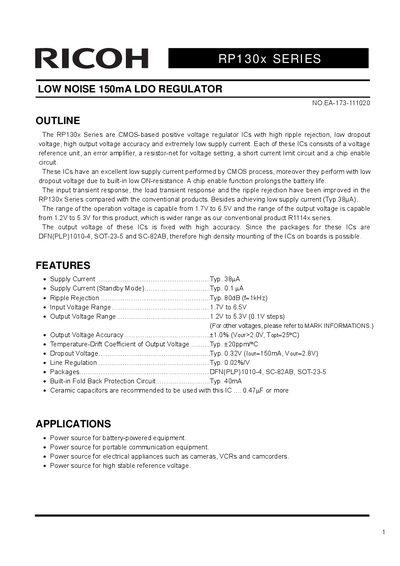

Ricoh RP130x Series Low Noise LDO Regulator Datasheet

The RP130x Series are CMOS-based positive voltage regulator ICs with high ripple rejection, low dropout voltage, high output voltage accuracy and extremely low supply current

Brand: Ricoh
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 22
File format: PDF
File size: 351 KB
Published: 09 July, 2012
Updated: 30 September, 2023
Model: RP130X
MD5 checksum: 9C3709CEF3081FA1D0D7FB257EA32688
PDF: Ricoh RP130x Series Low Noise LDO Regulator Datasheet PDF

About this manual

The Ricoh RP130x Series are CMOS-based positive voltage regulator ICs designed for low noise applications. Key features include high ripple rejection, low dropout voltage, high output voltage accuracy, and extremely low supply current (Typ. 38uA). The series supports an input voltage range of 1.7V to 6.5V and an output voltage range of 1.2V to 5.3V.

What's inside

Outline
Features
Applications
Block Diagrams
Selection Guide
Pin Configurations
Absolute Maximum Ratings
Electrical Characteristics
Typical Application
Technical Notes

Specifications

Ripple Rejection	Typ. 80dB (f=1kHz)
Input Voltage Range	1.7V to 6.5V
Operating Temperature Range	-40 to 85 °C
Packages	DFN(PLP)1010-4, SOT-23-5, SC-82AB

Frequently asked questions

What capacitor is recommended for stable operation?

A ceramic capacitor of 0.47uF or more is recommended for the output.

What is the input voltage range for this regulator?

The input voltage range is capable from 1.7V to 6.5V.
