This document describes the features and characteristics of the MC74AC125 and MC74ACT125 products. They are quad buffers with TTL compatible inputs and outputs, featuring high voltage level, low voltage level, and high impedance outputs. The document also provides maximum ratings and recommended operating conditions.

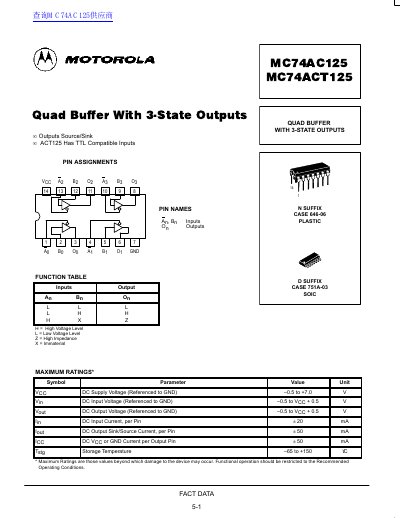

This document is a technical datasheet for the Motorola MC74AC125 and MC74ACT125 integrated circuits. These devices are quad buffers featuring 3-state outputs, designed for use in digital logic applications. The datasheet provides detailed information on pin assignments, function tables, and maximum ratings for both the AC and ACT variants.
| Product Type | Quad Buffer With 3-State Outputs |
|---|---|
| Supply Voltage Range | -0.5 to +7.0 V |
| Operating Temperature Range | -65 to +150 °C |
| Input Capacitance | 45 pF |
| Package Type | Plastic DIP / Plastic SOIC |
It is a quad buffer with 3-state outputs.
The maximum DC supply voltage is +7.0 V.
The supply voltage should be between 4.5 V and 5.5 V.
