This is a document about MC74AC11 and MC74ACT11 products. These products are triple 3-input AND gates with TTL compatible inputs and high output sink/source current capabilities. They operate at a voltage range of 2.0V to 6.0V and have fast input rise/fall times.

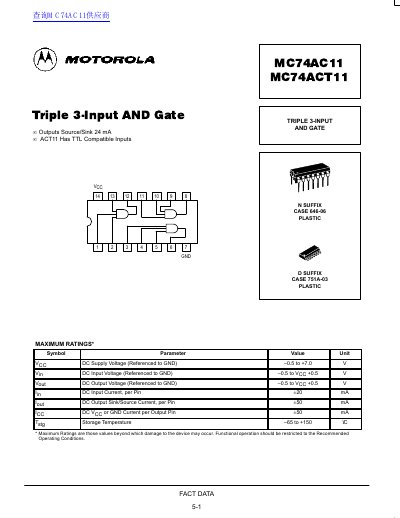

This document provides technical specifications for the Motorola MC74AC11 and MC74ACT11 Triple 3-Input AND Gate integrated circuits. It covers maximum ratings, recommended operating conditions, and DC and AC electrical characteristics for both the 74AC and 74ACT series.
| Outputs Source/Sink Current | 24 mA |
|---|---|
| DC Supply Voltage (Voc) | -0.5 to +7.0 V |
| DC Input Voltage (Vin) | -0.5 to Voc +0.5 V |
| DC Output Voltage (Vout) | -0.5 to Voc +0.5 V |
| DC Input Current (per Pin) | +20 mA |
| DC Output Sink/Source Current (per Pin) | +50 mA |
| Storage Temperature (Tstg) | -65 to +150 °C |
| Supply Voltage (Vcc) Min/Max | 2.0 V / 6.0 V |
| Operating Ambient Temperature (Ta) | -40 to +85 °C |
| Input Capacitance (CIN) | 45 pF |
| Power Dissipation Capacitance (Cpp) | 20 pF |
The maximum DC supply voltage referenced to GND is +7.0 V.
The device is available in N SUFFIX Plastic DIP (Case 646-06) and D SUFFIX Plastic SOIC (Case 7514-03).
