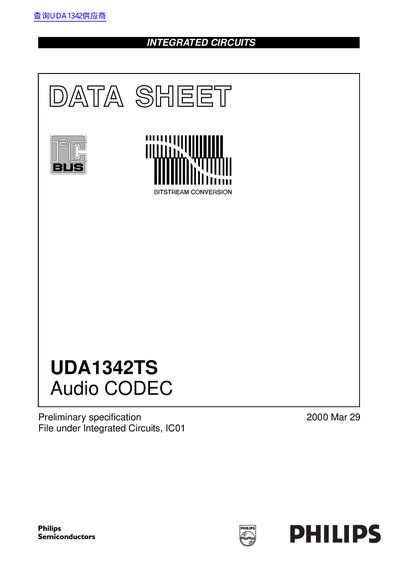

This document is the datasheet of UDA1342TS audio codec, which mainly introduces the product's features, applications, general description, quick reference data, ordering information, block diagram, pin definition, functional description, etc.
The Philips UDA1342TS is a single-chip 4-channel analog-to-digital converter (ADC) and 2-channel digital-to-analog converter (DAC) employing bitstream conversion techniques. Designed for low-power portable applications, it supports sample frequencies from 16 to 110 kHz and offers high pin compatibility with the UDA1341TS.
The device features advanced audio configuration including separate power control for ADC and DAC, programmable gain amplifiers (PGA), and integrated digital filters. It provides multiple format data interface support (I2S-bus, MSB-justified, LSB-justified) and includes digital sound processing capabilities such as tone control, de-emphasis, and mute functions controllable via L3-bus or I2C-bus interfaces.
| Power supply voltage (ADC/DAC) | 2.7 to 3.6 V |
|---|---|
| Data path width | 24 bits |
| Supported sample frequencies | 16 to 110 kHz |
| ADC Analog supply current (all enabled) | -200 mA |
| DAC Analog supply current (operating) | -6.0 mA |
| Ambient temperature range | -40 to +85 °C |
| ADC Signal-to-noise ratio (fs=48 kHz) | -100 dB |
| Package type | SSOP28 |
The device operates with a 2.7 to 3.6 V power supply.
It supports sample frequencies ranging from 16 kHz to 110 kHz.
Yes, it has high pin compatibility with the UDA1341TS.
Control can be selected via L3-bus interface, I2C-bus interface, or static pin control.
