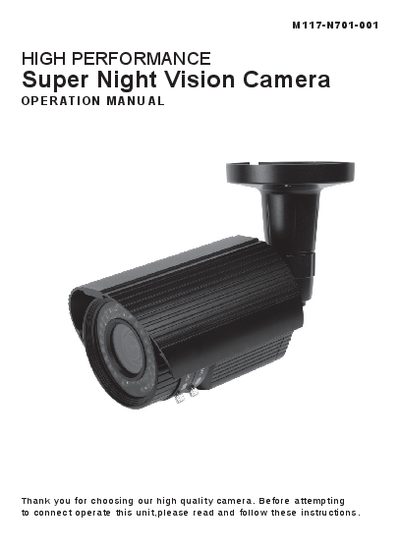

EverFocus EZ750_manual

This manual introduces the features and characteristics of the high performance super night vision camera, including precautions, safety instructions, functions, components, name and function, installation, dimensions, specifications, OSD manual and communication protocol.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 25
File format: PDF
File size: 1.7 MB
Published: 09 July, 2012
Updated: 01 October, 2023
MD5 checksum: B0E1A7BDB43C2EC8D4699C6F2C6E3A32
PDF: EverFocus EZ750_manual PDF

About this manual

This document is the operation manual for the M117 N701 Super Night Vision Camera. It provides instructions for safe operation, installation, and maintenance of the device, which features a 1/3" 960H Sony EXview HAD CCD II sensor and supports dual voltage operation.

What's inside

CAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
FEATURES
COMPONENTS
NAME AND FUNCTION
INSTALLATION
DIMENSIONS
SPECIFICATION
OSD MANUAL
COMMUNICATION PROTOCOL

Specifications

Sensor	1/3" 960H SONY EXview HAD CCD II
Resolution	700TV Lines
Voltage	DC12V / AC24V
Power Supply	DC12V 1A

Frequently asked questions

What power supply is recommended for this camera?

A regulated DC12V 1A power supply is recommended for the best picture and stable operation.

Can this camera be used with an unregulated power supply?

No, using an unregulated power supply can cause damage to the camera and void the warranty.

What languages does the OSD support?

The OSD supports English, Chinese, Russian, Spanish, German, French, Portuguese, and Japanese.

Download PDF (1.7 MB)
