BTA06 TW/SW BTB06 TW/SW logic level triacs feature low IGT/IH current and high efficiency switching characteristics, suitable for power control and lighting circuits, rated current is 6A, rated voltage is 400V/600V/700V, and can work in the temperature range of -40℃ to +110℃

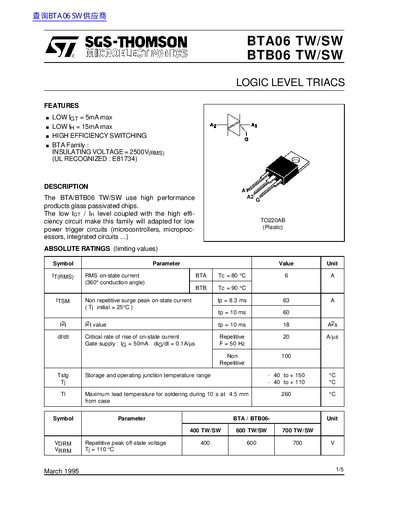

This document is a datasheet for the SGS-THOMSON BTA06 TW/SW and BTB06 TW/SW logic level triacs. It provides detailed specifications including RMS on-state current, surge peak on-state current, and gate characteristics. The devices are designed for low power trigger circuits such as microcontrollers and integrated circuits.
| RMS on-state current (360° conduction angle) | 6 A (BTA) / 6 A (BTB) |
|---|---|
| Non repetitive surge peak on-state current (tp = 8.3 ms) | 63 A |
| Critical rate of rise of on-state current (Repetitive) | 20 A/ µs |
| Storage and operating junction temperature range (BTA) | - 40 to + 150 °C |
| Maximum lead temperature for soldering | 260 °C |
| Junction to ambient thermal resistance | 60 °C/W |
| Junction to case thermal resistance (DC) | 4.4 °C/W (BTA) / 3.3 °C/W (BTB) |
| Gate trigger current (MAX) | 5 mA (TW) / 10 mA (SW) |
| Gate trigger voltage (MAX) | 1.5 V |
| Package type | TO220AB Plastic |
They are adapted for low power trigger circuits such as microcontrollers, microprocessors, and integrated circuits.
The maximum RMS on-state current is 6 A at a case temperature of 80 °C.
The storage and operating junction temperature range is from -40 °C to +150 °C.
The recommended torque value is 0.8 m.N.
