Agilent 1100 Series Capillary LC System is a high-performance capillary LC system that can deliver flow rates from 1 μl/min to 2.5 ml/min. It can be used as a capillary LC system or a conventional LC system. It is a groundbreaking capillary LC system that achieves excellent high-sensitivity analysis and reproducibility at the same time.

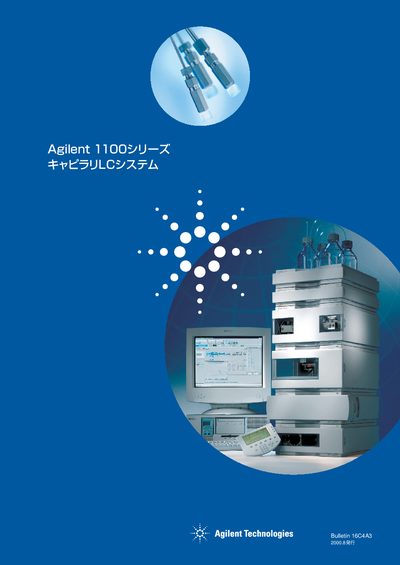

This document introduces the Agilent 1100 Series Capillary LC System, a high-performance liquid chromatography (HPLC) system designed for wide flow rate ranges from 1 µL/min to 8.5 mL/min. It is capable of functioning as both a capillary LC system and a conventional LC system, offering high sensitivity and reproducibility for trace sample analysis. This manual is written in Japanese.
| Flow Rate Range (Capillary Mode) | 1 µL/min - 100 µL/min |
|---|---|
| Flow Rate Range (Standard Mode) | Up to 8.5 mL/min |
| Retention Time Reproducibility (RSD) | 0.1596 or less |
| Detection Limit | ppb level or lower |
| Temperature Control Range | 4°C to 40°C |
| Wavelength Range | 190-950 nm |
| Flow Cell Volume | 500 nL |
| Optical Path Length | 10 mm |
| Qualification Time | Within 4 hours |
The system supports high-precision delivery from 1 µL/min to 100 µL/min in capillary mode, and up to 8.5 mL/min in standard mode.
Yes, the system is designed to be used as both a capillary LC system and a conventional LC system.
The system achieves a retention time reproducibility (RSD) of 0.1596 or less.
The system verification work can be completed within 4 hours using the OQ/PV function.
