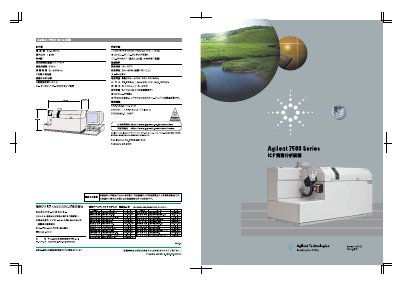

This document introduces the Agilent 7500 Series Inductively Coupled Plasma Mass Spectrometers (ICP-MS). It highlights that this series inherits the reliability of the previous 4500 series while offering improved performance and operability. The text describes four specific models optimized for different applications: high-sensitivity analysis, automated dilution for environmental samples, standard wide-range analysis, and octopole reaction systems for biological samples.
Key technical features include a double-focusing mass filter with 3MHz control, an Omega lens system for low background noise, and a three-channel peristaltic pump. The document also outlines the instrument's dimensions (1100 x 640 x 600 mm), weight (175 kg), power requirements (single-phase 200-240V, 30A), and operating conditions for temperature and humidity. This manual is written in Japanese.
| Dimensions (WxDxH) | 1100 x 640 x 600 mm |
|---|---|
| Weight | 175Kg |
| Maximum Output Power | 1.6kW |
| Mass Range | 2-260amu |
| Operating Temperature | 15-30C |
| Operating Humidity | 60~80% |
| Power Supply (Single Phase) | 200-240V, 30A |
| Cooling Water Flow | 5L/min or more |
The series includes models optimized for high sensitivity (FBO0s), automated dilution (FBoQI), standard wide-range analysis (FBoQQa), and octopole reaction systems (FBoQOc).
The mass range covers from 2 to 260 amu.
