This file introduces Agilent's HFXY T3 probe, which supports HX, FX, HF, HFX, and HFXY experiments without replacing the probe. The probe is based on T3 technology and can achieve a wide range of frequencies by replacing different tuning tubes. Multiple lengths and thicknesses of tuning tubes can meet different needs.

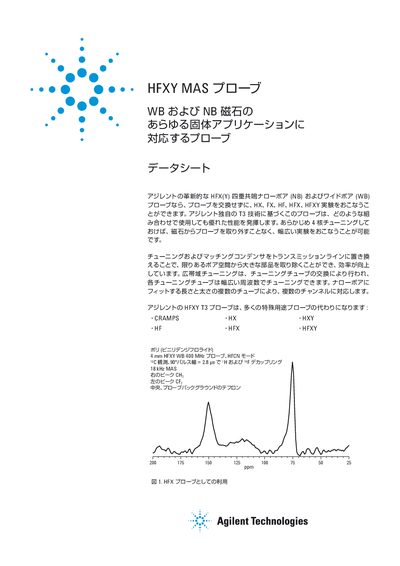

The document introduces the Agilent innovative HFX(Y) Narrow Bore (NB) and Wide Bore (WB) probes designed for all solid-state applications using WB and NB magnets. Based on Agilent's unique T3 technology, these probes allow users to perform HX, FX, HF, HFX, and HFXY experiments without exchanging the probe. The design replaces tuning and matching capacitors with transmission lines to remove large components from limited bore space, improving efficiency. This manual is written in Japanese.
| Probe Type | HFXY T3 Probe |
|---|---|
| Compatible Experiments | HX, FX, HF, HFX, HFXY |
| Technology Basis | Agilent T3 Technology |
The HFXY MAS Probe allows performing HX, FX, HF, HFX, and HFXY experiments without exchanging the probe.
The probe requires VnmrJ 3.1 with the trtune feature to tune all channels simultaneously.
