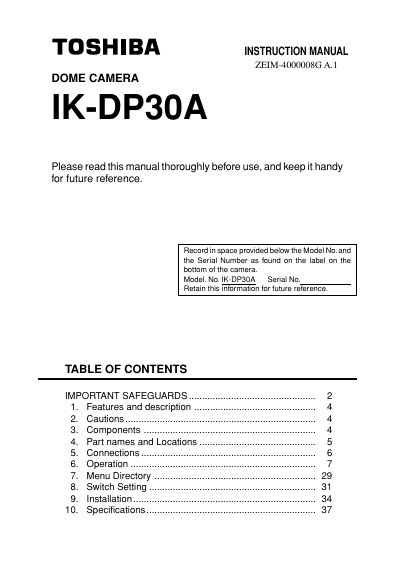

This document is an instruction manual for the IK-DP30A dome camera, which includes important precautions, product features and description, components, part names and locations, connections, operation guide, menu directory, switch setting, installation method, and specifications.
The Toshiba IK-DP30A is a dome camera featuring a quick install design, 480 lines horizontal resolution, and 18x optical/12x digital zoom. It supports privacy zone masking, auto-flip, and has a minimum illumination of 0.01 Lux. The camera includes a 400 degree/second pan speed and 64 position presets.
| Horizontal Resolution | 480 Lines |
|---|---|
| Pan Speed | 400 Degree/Second |
| Optical Zoom | 18X |
| Minimum Illumination | 0.01 Lux |
| Signal-To-Noise Ratio | 50dB |
| Preset Positions | 64 |
| Power Supply | 24V AC |
Input 95 using the numeric keypad and press the PRESET button to display the MENU screen.
Preset 33 is used to perform the Flip function.
Enter preset 76 and press the GO command to initialize the Pan/Tilt.
