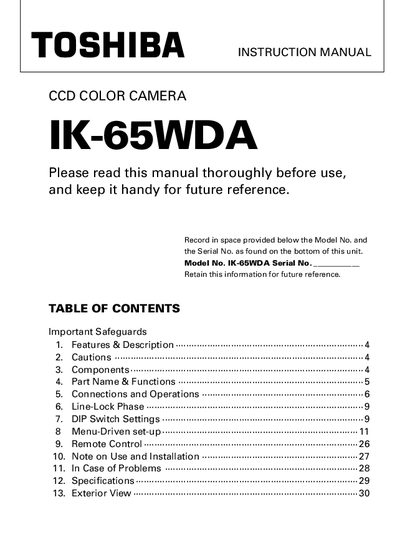

Toshiba IK-65WDA CCD Color Camera Instruction Manual

This manual provides detailed information on the features and usage of the CCD Color Camera IK-65WDA.

Brand: Toshiba
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 1.2 MB
Published: 06 July, 2012
Updated: 01 October, 2023
MD5 checksum: B0D40C3AF923B2A8AD82400FC99B0B37
PDF: Toshiba IK-65WDA CCD Color Camera Instruction Manual PDF

About this manual

This document is the instruction manual for the Toshiba IK-65WDA CCD Color Camera. It covers important safety safeguards, features such as 133 times dynamic range and digital noise reduction, and component descriptions including the camera body and accessories. The manual details the necessary connections for power and video signals, as well as operations for line-lock control and menu-driven setup.

What's inside

Important Safeguards
Features & Description
Components
Connections and Operations
Line-Lock Phase
DIP Switch Settings
Menu-Driven set-up
Remote Control
Specifications
Exterior View

Specifications

Dynamic Range	133 Times
Digital Noise Reduction	53dB
Minimum Illumination	0.001Lux
Shutter Speed	1/100,000 sec
Horizontal Resolution	520 lines
Power Supply	24V AC or 12V DC

Frequently asked questions

What power supply is required for the camera?

The camera requires a 24V AC UL Listed Class 2 power supply or a 12V DC power supply.

Is the lens supplied with the camera?

No, lenses, coaxial cables for video signals, and the power cord are not supplied with the camera.

What type of cable is required for standard connection?

A 75-ohm coaxial cable (3C-2V or 5C-2V) is required for standard connection.
