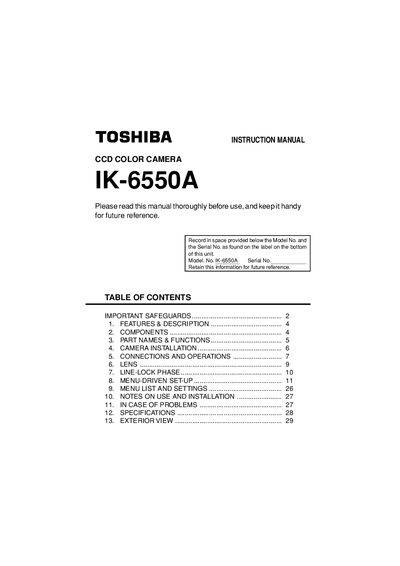

This manual details the features and characteristics of the IK-6550A camera, including installation, connection, operation, and setup, to help users use and maintain the product.
The Toshiba IK-6550A is a 1/3 inch high-resolution CCD color camera featuring menu-driven setup. It supports dual voltage (24V AC or 12V DC) and includes automatic functions such as day/night switching, auto white balance, and back light compensation.
| Image Sensor | 1/3 inch high-resolution CCD |
|---|---|
| Minimum Illumination | 0.2 lux at F1.2 (GAIN: HIGH) |
| S/N Ratio | 50dB |
| Horizontal Resolution | 540 TV lines |
The recommended power supplies are a 6 watt minimum 24V AC UL Listed Class 2 power supply or a 12V DC power supply.
No, you must never input 24V AC and 12V DC at the same time.
A 75-ohm coaxial cable with connector (38C-2V or 5C-2V) is required.
