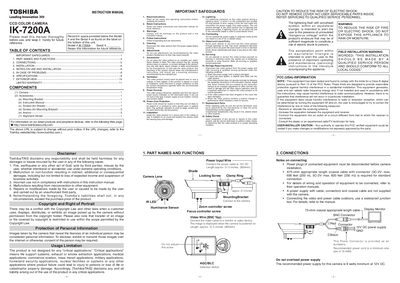

This document is the instruction manual of IK-7200A camera.
The document serves as an instruction manual for the Toshiba IK-7200A CCD Color Camera. It details the components included with the unit, such as the mounting bracket and screws, and explains their functions including the camera lens, shade, IR LED, and various controller screws.
The guide covers essential setup procedures, specifically how to connect the power supply (12V DC) and video cables (BNC Tap). It also outlines important safety precautions regarding installation on secure surfaces, ventilation requirements, and proper handling of electrical connections.
| Power Input Voltage | 12V DC |
|---|---|
| Recommended Power Supply Current | 9 watts minimum at 12V DC |
| Power Cable Length | approx. 31.5 inches (800mm) |
| Video Wire Length | approx. 31.5 inches (800mm) |
The recommended power supply is a minimum of 9 watts at 12V DC.
Both the power input wire and video wire are approximately 31.5 inches (800mm) long.
