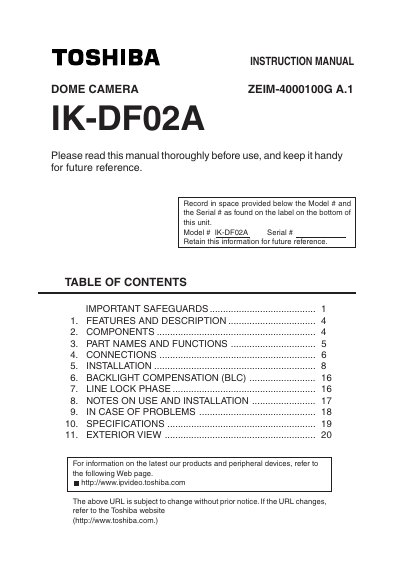

This manual provides detailed introduction on the features and characteristics of IK-DF02A camera, including function, components, connections, installation, usage methods, troubleshooting, etc.
The Toshiba IK-DFO2A is a dome camera featuring a 24V AC/12V DC dual-voltage capability and a built-in varifocal lens with an auto-iris. It includes a 1/3 inch high-resolution CCD sensor and offers automatic color-to-black-and-white switching for day/night operation. The camera supports selectable synchronization modes, including internal and line lock, and features Back Light Compensation (BLC) and Auto Gain Control (AGC).
| Voltage | 24V AC/12V DC |
|---|---|
| Lens Type | Built-in varifocal lens |
| Focal Length | 2.8 ~ 10 mm |
| Sensor | 1/3 inch CCD |
| Minimum Illumination | 0.5 lux |
| S/N Ratio | 50dB |
The camera supports 24V AC or 12V DC power sources.
It automatically switches to color in daylight or black and white at night.
The built-in varifocal lens has a focal length of 2.8 to 10 mm.
