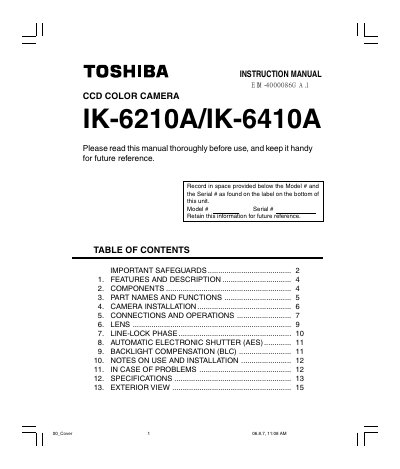

This is an instruction manual for the IK-6210A/IK-6410A model CCD color camera, which introduces the product's features and characteristics and usage methods.
This manual provides instructions for the Toshiba IK-6210A and IK-6410A CCD color cameras. It details important safety precautions, features such as automatic electronic shutter and backlight compensation, and component identification. The document guides users through camera installation, including mounting and wiring requirements.
| Minimum illumination (IK-6210A) | 0.2 lux at F1.2 |
|---|---|
| Minimum illumination (IK-6410A) | 0.2 lux at F1.0 |
| CCD Sensor (IK-6410A) | 1/3 inch high-resolution CCD |
| Power supply | 24V AC or 12V DC |
The recommended power supplies are 6 watt minimum for each 24V AC UL Listed Class 2 power supply or 12V DC power supply.
Yes, the camera has the ability to automatically switch the display to color in daylight or black and white at night.
The camera synchronization mode is selectable between internal and line-lock.
