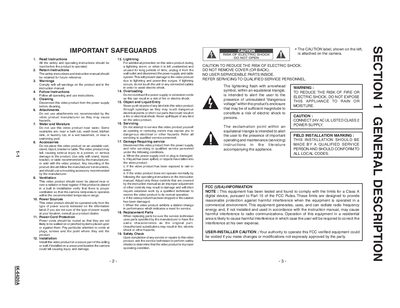

This document is a manual for a camera called IK-6420A, which describes some features and characteristics of the camera. The camera is equipped with a caution label, reminding users of the risks of electric shock and fire. There are dangerous voltages inside the camera, and users should not remove the cover. The use and maintenance of the camera should follow the instructions in the accompanying literature.
The document serves as a user guide for the Toshiba IK-6210A, IK-6410A, and IK-6420A video cameras. It details key features such as dual-voltage capability (24V AC/12V DC), automatic color-to-black-and-white switching, and adjustable white balance. The manual specifies technical differences between the models regarding minimum illumination and horizontal resolution.
| Minimum Illumination (IK-6210A) | 0.2 lux at F1.2 |
|---|---|
| Minimum Illumination (IK-6410A, IK-6420A) | 0.2 lux at F1.0 |
| Horizontal Resolution (IK-6420A) | 540 TVL |
| Horizontal Resolution (IK-6410A) | 480 TVL |
| Horizontal Resolution (IK-6210A) | 350 TVL |
The recommended power supplies are a 6 watt minimum 24V AC UL Listed Class 2 power supply or a 12V DC power supply.
No, you must never input 24V AC and 12V DC simultaneously.
No, the mounting bracket is not included in the package.
