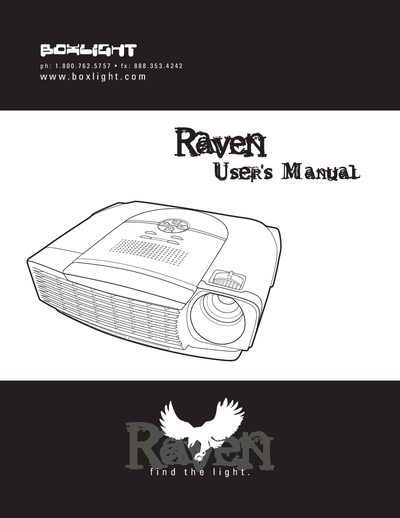

BOXLIGHT Raven Projector User Manual

This document is a user manual that provides instructions and safety information for a digital device. The device has been tested and complies with FCC regulations.

Brand: BOXLIGHT
Category: Projector
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 2.1 MB
Published: 06 July, 2012
Updated: 29 September, 2023
MD5 checksum: 77CB95F0D41931840B2AB333CD997BC3
PDF: BOXLIGHT Raven Projector User Manual PDF

About this manual

The BOXLIGHT Raven is a portable projector featuring single-chip 0.55" Texas Instruments DLP technology with SVGA resolution. It includes a 1.2x manual zoom lens, auto image re-sizing, and compatibility with various video standards including NTSC, PAL, and SECAM. The device utilizes a 200-watt user-replaceable lamp and supports multi-function remote control and multi-language on-screen displays.

What's inside

Product Introduction
Projector Features
Package Contents
Getting to Know the Projector
Installation
Connecting the Projector
Powering On/Off
Adjusting the Projected Image
Control Panel
Replacing the Lamp

Specifications

Projection Technology	Single chip 0.55" Texas Instruments DLP
Resolution	SVGA (800 x 600 pixels)
Zoom Lens	1.2x manual zoom
Lamp Power	200-watt
Video Compatibility	VGA, SVGA, XGA, SXGA

Frequently asked questions

Can the projector be serviced by the user?

No, users should not attempt to service the product themselves as opening covers may damage components and void the warranty.

What should be done after powering off the projector?

Wait for the fan to stop before unplugging the power cord, as the fan continues to operate for ventilation reasons.
