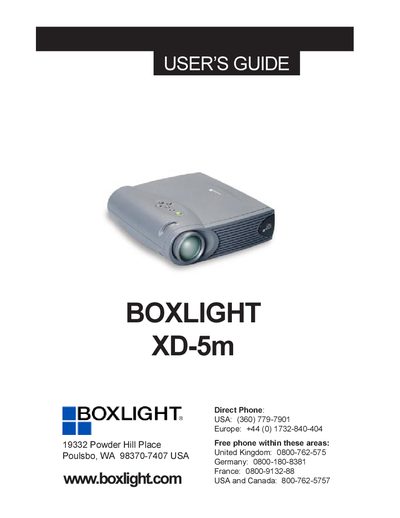

Boxlight XD-5m Projector User's Guide

This document is Boxlight product FCC certification document.

Brand: BOXLIGHT
Category: Projector
Document type: User Manual
Language: English
Pages: 58
File format: PDF
File size: 999 KB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9CAE1D09E50E964C909374C2669EC7DE
PDF: Boxlight XD-5m Projector User's Guide PDF

About this manual

The Boxlight XD-5m is a compact 4.8-pound projector designed specifically for mobile presenters. It utilizes Digital Light Processing (DLP) technology to generate crisp XGA resolution images with 16.7 million colors. The device features an automatic image expansion capability and supports various input sources including computers, VCRs, DVD players, and camcorders.

What's inside

Safety Instructions
Introduction
Unpacking the Projector
Setting up the Projector
Connecting a Computer
Using the Remote Control
Basic Image Adjustment
Maintenance & Troubleshooting
Specifications

Specifications

Image Resolution	1024x768 (XGA)
Lamp Type	120-watt VIP lamp
Input Power (US)	100-120VAC 6A;50/60Hz
Operating Temperature	50 to 104° F (10 to 40 ° C)
Dimensions	8.9 x 10 x 2.8 inches

Frequently asked questions

What is the native resolution of the Boxlight XD-5m?

The native image resolution is XGA at 1024x768.

Can I use this projector with a Macintosh computer?

Yes, it is compatible with Apple Macintosh and PowerBook computers up to 1024x768 resolution.

How long should I wait before replacing the lamp?

You must wait 30 minutes after turning off the projector to avoid burns.
