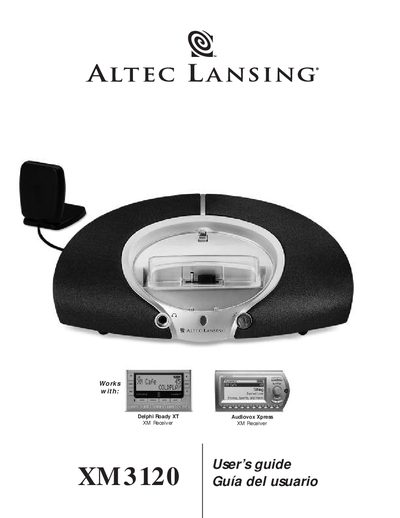

This document is a user's guide for XM3120 Audiovox Xpress XM Receiver and Delphi Roady XT XM Receiver, providing safety instructions and instructions for connecting the power cord.
The Altec Lansing XM3120 is a powered speaker system designed to work with specific XM satellite radio receivers. The package includes the speaker system, an XM Radio home antenna with a 20-foot cord, a power supply, interchangeable docking adapters, and this user's guide.
To operate the system, connect the antenna outdoors pointing south, place the unit on a level surface within 20 feet of the antenna, and insert the appropriate receiver into the docking adapter. Connect the power supply to the rear DC jack and plug it into a wall outlet. Once powered on, the red LED indicates standby mode, while a green LED confirms the system is ready to play.
| Sound Pressure Level (SPL) | 92 dB |
|---|---|
| System Response | 80 Hz — 20 kHz (-10 dB) |
| Total Continuous Power | 6 Watts RMS |
| Signal to Noise Ratio | > 65 dB @1 kHz input: 3 Watts/channel @1 kHz input: > 65 dB @6 ohms @10% THD |
The system works with Delphi Roady XT and Audiovox Xpress XM satellite radio receivers.
Insert the connector into the rear input and ensure the antenna points south outdoors through a window.
A red LED indicates the system is in stand-by mode, while a green LED means it is ready to play.
