The ALTEC R TH136 Humidity Controller is a humidity controller with complete functions and simple operation. It forms a humidity closed-loop control system by controlling devices such as ultrasonic humidifiers, steam humidifiers, or dehumidifiers. It can be widely used in the fields of meteorology, environmental protection, tobacco, pharmaceuticals, chemicals, grain storage, textiles, papermaking, incubation, and medical humidity control.
The ALTEC TH136 is a humidity controller designed for a wide range of applications such as meteorology, environmental monitoring, pharmaceuticals, and food storage. It can control ultrasonic, steam humidifiers or dehumidifiers to form a closed‑loop humidity control system.

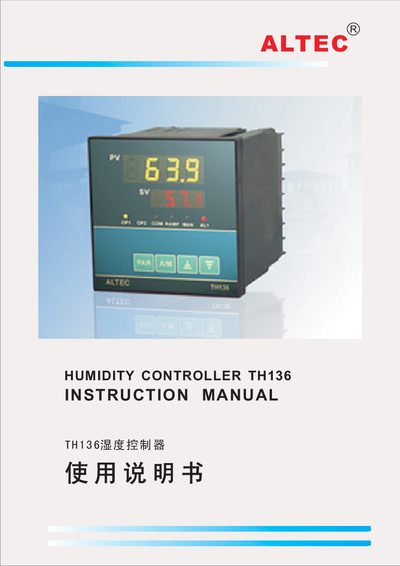

This instruction manual covers the product overview, model definitions, installation and dimensions, electrical connections, panel description and operation, software configuration (parameter codes), optional functions, and detailed technical specifications. This manual is written in Chinese.
| Measurement accuracy | ±3% RH |
|---|---|
| Input voltage range | 85~264 V AC, 45/60 Hz |
| Operating temperature | 0~50 °C |
| Relative humidity measurement range | 0~99 % RH |
| Relay output (NO contacts) | max 250 V AC, 3 A |
| Logic level output | 20 V / 10 mA |
| Analog output ranges | 0‑10 mA, 4‑20 mA, 0‑20 mA, 0‑5 V, 1‑5 V, 0‑10 V |
| Physical dimensions | 96 mm ×96 mm ×100 mm or 72 mm ×72 mm ×100 mm |
It supports relay (NO contacts 250 V AC, 3 A), logic‑level 20 V/10 mA, SSR, triac, and analog outputs (0‑10 mA, 4‑20 mA, 0‑20 mA, 0‑5 V, 1‑5 V, 0‑10 V).
The humidity measurement accuracy is ±3 % RH.
The unit operates from 85 V to 264 V AC at 45 Hz or 60 Hz.
