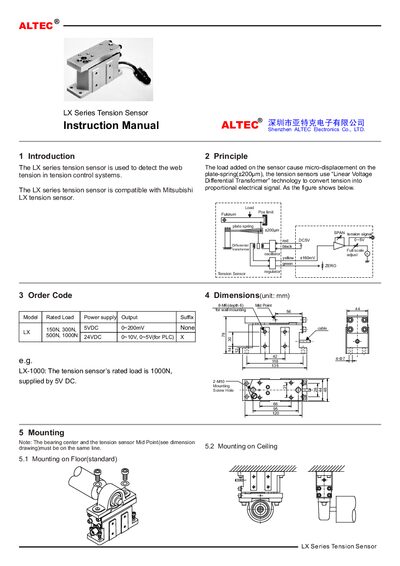

The ALTEC LX Series Tension Sensor Instruction Manual provides wiring, mounting, dimensions, and specifications for the sensor.
The LX Series Tension Sensor detects web tension in tension‑control systems using Linear Voltage Differential Transformer technology. The sensor converts micro‑displacement of a plate‑spring into a proportional electrical signal.
The manual covers mounting options on floor, ceiling or wall, wiring colour codes, power‑supply requirements, dimensions, weight, environmental limits and full technical specifications such as rated load, output voltage ranges and cable lengths.
| Rated Load | 150N, 300N, 500N, 1000N |
|---|---|
| Power Supply | DC 5V/20mA or DC 24V/20mA (LX‑X) |
| Output Voltage | 0~200 mV, 0~10 V, 0~5 V (for PLC) |
| Dimensions | 134 × 48 × 78 mm |
| Net Weight | 1.8 kg |
| Ambient Temperature | 0 ~ 40 °C |
| Cable Length | 3 ~ 6 m |
The sensor is offered with rated loads of 150 N, 300 N, 500 N, and 1000 N.
The sensor measures 134 × 48 × 78 mm and weighs 1.8 kg.
