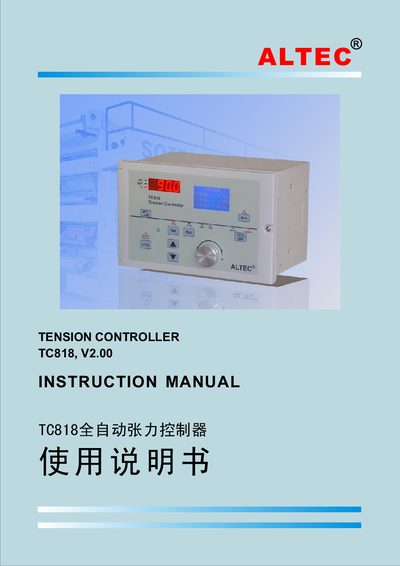

This manual provides installation, operation, and maintenance instructions for the ALTEC TC818 V2.00 tension controller used in paper, printing, packaging…
The ALTEC TC818 is a fully automatic tension controller designed for high-precision control of web materials in industrial applications such as paper making, printing, packaging, and textile dyeing. It features a 128x96 graphical LCD with Chinese or English display options and supports various sensor inputs including micro-displacement and strain gauge types.
The device offers both manual and automatic control modes with non-disturbance switching capabilities. Key functions include dual-axis switching, taper tension control using proximity switches for diameter measurement, and PID algorithm tuning to prevent overshoot during startup and shutdown. The controller can drive magnetic powder clutches/brakes directly or output signals to control variable frequency drives and servo motors. This manual is written in Chinese.
| Display Type | 128x96 Graphical LCD |
|---|---|
| Power Supply Input | 92~264V AC |
| Main Output Voltage/Current | 0~24V / 4A |
| Auxiliary Output Signal A | 0~5V DC or -5V ~ +5V DC |
| Sensor Input Range (Micro-displacement) | 200mV |
| Sensor Input Range (Strain gauge) | 20mV |
The manual lists two possible passwords: 808 and 818.
Yes, it supports non-disturbance switching between automatic and manual control modes.
The controller supports optional RS485 or RS232 communication interfaces.
