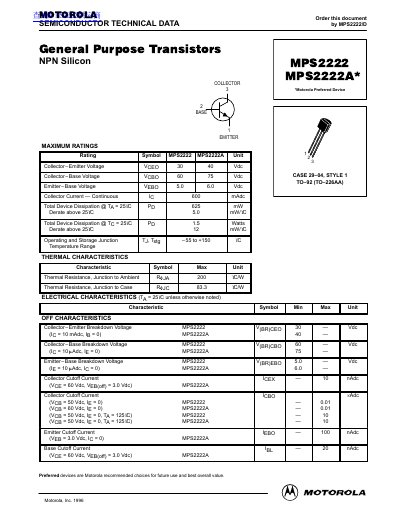

This datasheet provides maximum ratings, thermal characteristics, electrical characteristics, etc. for the MPS2222 and MPS2222A.
This document provides technical data for the Motorola MPS2222 and MPS2222A series of NPN silicon general-purpose transistors. It includes maximum operating ratings such as collector-emitter voltage and total device dissipation, along with detailed electrical characteristics for both OFF and ON states.
| Collector-Emitter Voltage (MPS2222) | 30 Vdc |
|---|---|
| Continuous Collector Current | 600 mAdc |
| Total Device Dissipation (Ta = 25°C) | 15 Watts |
| Operating Junction Temperature Range | -55 to +150 °C |
The device supports a continuous collector current of 600 mA.
Total device dissipation is rated at 15 Watts when the case temperature is 25°C.
The MPS2222A model has a maximum collector-emitter voltage of 40 V and a collector-base voltage of 75 V.
