The Agilent 5975C TAD GC/MSD system is a high-performance, flexible gas chromatography-mass spectrometry system that can be coupled with the high-performance Agilent 7890A GC or the compact Agilent 6850 GC. The system also comes with the 7693 liquid autosampler and other GC autosamplers. The ChemStation MSD Productivity software also provides a variety of laboratory tools.

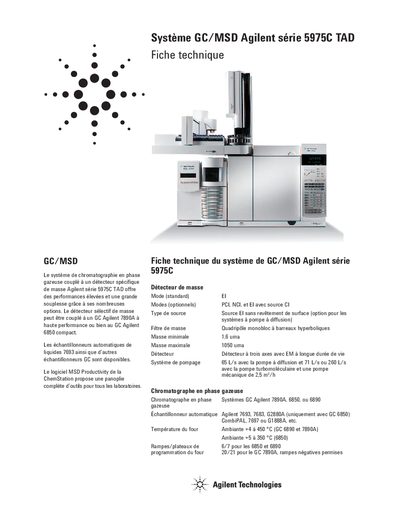

This document provides a technical overview of the Agilent 5975C Series Gas Chromatography/Mass Spectrometry Detector (GC/MSD) system. It details the system's high performance and flexibility, noting its compatibility with Agilent 7890A and 6850 gas chromatographs, as well as various liquid and gas autosamplers like the 7693.
The datasheet outlines the specific technical specifications of the mass detector, including standard and optional modes (PCI, NCI, EI), a monolithic quadrupole source, and pumping options. It also describes the ChemStation MSD Productivity software suite and lists performance metrics such as sensitivity and physical dimensions for the system. This manual is written in French.
| Detector Type | Three-axis detector with EM |
|---|---|
| Pumping System (Turbomolecular) | 71 L/s or 260 L/s |
| Oven Ramp/Plateau Programming | 20/21 for GC 7890A |
| System Dimensions (GC/MS) | 88 cm (w), 60 cm (d), 50 cm (h) |
| System Weight | 81 to 96 kg |
It can be coupled with an Agilent 7890A high-performance GC or the compact Agilent 6850 GC.
The system includes the ChemStation MSD Productivity software, with MassHunter available as an option.
