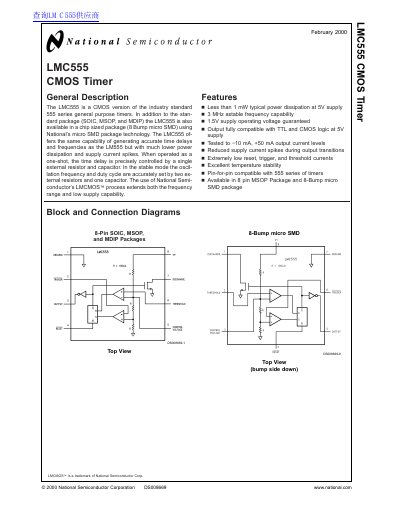

This document introduces the characteristics and features of the LMC555 CMOS timer
The document is a technical datasheet for the LMC555, a CMOS version of the industry-standard 555 series general-purpose timers. It highlights features such as low power dissipation (less than 1 mW typical at 5V), a maximum astable frequency capability of 3 MHz, and operation down to a guaranteed supply voltage of 1.5V.
| Typical Power Dissipation (5V) | < 1 mW |
|---|---|
| Maximum Astable Frequency | 3 MHz |
| Minimum Supply Voltage | 1.5V |
The device has a maximum astable frequency capability of 3 MHz.
Yes, the output is fully compatible with TTL and CMOS logic at a 5V supply.
The LMC555 is available in SOIC, MSOP, MDIP, and an 8-Bump micro SMD package.
