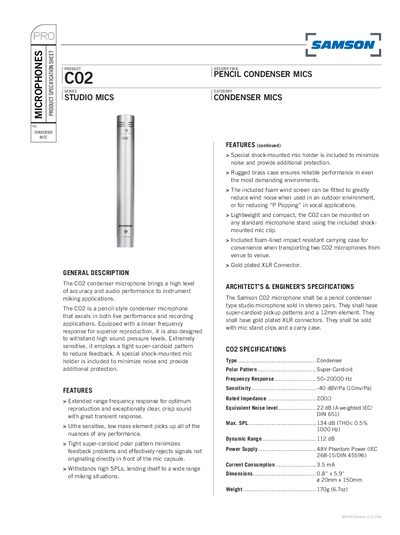

The C02 pencil condenser microphone employs a tight super-cardioid polar pattern, an extremely sensitive, low mass element, and a rugged brass case to deliver outstanding performance in a variety of demanding applications.
The Samson C02 is a pencil-style condenser microphone designed for instrument miking, live performance, and recording applications. It features a tight super-cardioid polar pattern to minimize feedback and is equipped with a special shock-mounted mic holder to reduce noise and provide protection.
| Polar Pattern | Super-Cardioid |
|---|---|
| Frequency Response | 50~20000 Hz |
| Sensitivity | -40 dBV/Pa (10mv/Pa) |
| Rated Impedance | 2000 |
| Equivalent Noise level | 22 dB (A weighted IEC/DIN 651) |
| Max. SPL | 134 dB (THDs 0.5% 1000 Hz) |
| Dynamic Range | 112 dB |
| Power Supply | 48V Phantom Power (IEC 268-15/DIN 45596) |
| Current Consumption | 3.5 mA |
| Dimensions | 0.8" x 5.9" (20mm x 150mm) |
| Weight | 170g (6.702) |
The microphone has a frequency response ranging from 50 Hz to 20,000 Hz.
The microphone can withstand a maximum SPL of 134 dB with 0.5% THD at 1000 Hz.
The dimensions of the microphone are 0.8 inches by 5.9 inches, or 20mm by 150mm.
