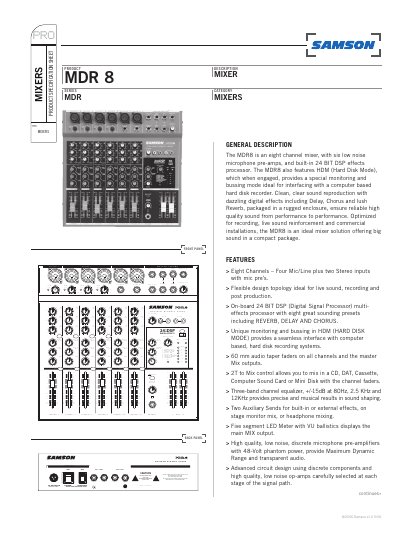

The document describes the Samson Technologies MDR8, an eight-channel mixer featuring six low-noise microphone pre-amplifiers and a built-in 24-bit DSP effects processor. It is designed for live sound reinforcement, recording, and commercial installations, offering features such as HDM (Hard Disk Mode) for interfacing with computer-based recorders.
| Channels | Eight Channels – Four Mic/Line plus two Stereo inputs with mic pre's. |
|---|---|
| DSP Effects | 24 BIT DSP multi-effects processor with eight presets including REVERB, DELAY AND CHORUS. |
| Frequency Response | 10 Hz - 30 kHz |
| THD (Mono Ch) | . 0.02% |
| Maximum Voltage Gain | 74 dB |
| Power Requirement | 110V-240V, 50/60Hz |
| Dimensions | 292mm x 292mm x 89mm |
| Weight | 6.3 lbs. (2.9 Kg) |
The product comes with a three-year extended warranty.
Yes, it features an on-board 24-bit DSP processor with eight presets including Reverb, Delay, and Chorus.
