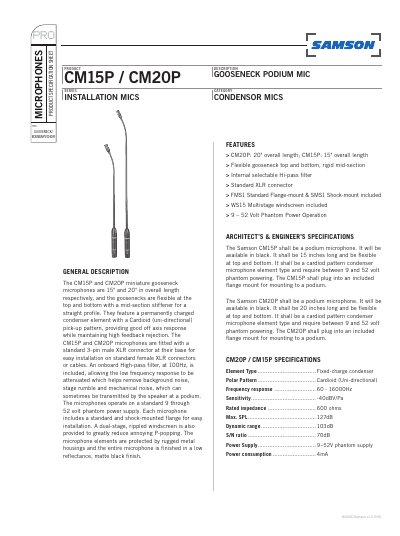

The document describes the CM15P / CM20P miniature gooseneck podium microphones, including their features and characteristics.
The document describes the Samson CM15P and CM20P series as miniature gooseneck microphones designed for installation on podiums. The CM15P has an overall length of 15 inches, while the CM20P is 20 inches long. Both models feature a flexible gooseneck with a rigid mid-section, a permanently charged condenser element with a cardioid pickup pattern, and a standard 3-pin male XLR connector.
| Element Type | Fixed-charge condenser |
|---|---|
| Polar Pattern | Cardioid (Uni-directional) |
| Frequency response | 60 - 16000Hz |
| Sensitivity | -40dBV/Pa |
| Rated impedance | 600 ohms |
| Max. SPL | 127dB |
| Dynamic range | 103dB |
| S/N ratio | 70dB |
| Power Supply | 9~52V phantom supply |
| Power consumption | 4mA |
The CM15P has an overall length of 15 inches.
The CM20P has an overall length of 20 inches.
Yes, an onboard High-pass filter at 100Hz is included to attenuate low frequency response.
