Samson CM12C Hanging Choir Microphone Product Specification Sheet

The CM12C is a miniature hanging condenser microphone which can be placed over an orchestra, choir or sound stage, and with its minimal profile, is mostly undetectable from even a slight distance. The CM12C features a permanently charged condenser element with a cardioid pickup pattern. The microphone exhibits excellent rear rejection providing maximum gain before feedback. The CM12C includes a steel hanger that allows the microphone to be pointed, and fixed, towards the position of the sound source. The microphone is supplied with a 30 foot cable terminating in a mini female XLR which connects to the included, PM5 power module with standard male XLR connector. The CM12C operates on standard 9 through 52 Volt phantom power supply. A multi-stage pop filter is also included. The microphone element is protected by a rugged metal housing and the entire microphone has a low reflectance, matte black finish.

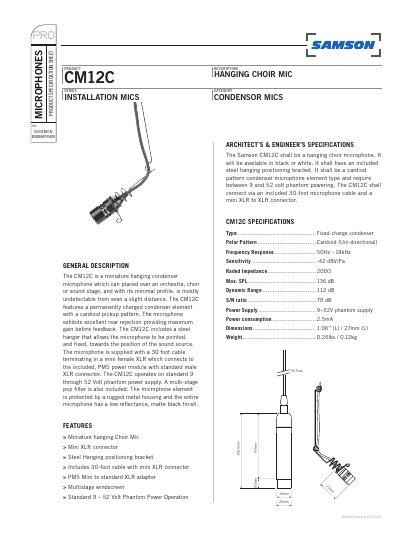

Samson CM12C Hanging Choir Microphone Product Specification Sheet - cover page
Brand
Samson
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
602 KB
Published
05 July, 2012
Updated
28 September, 2023
MD5 checksum
0A8556BBACAB714A44677B351C3E86E6

About this manual

The Samson CM12C is a miniature hanging condenser microphone designed for use over orchestras, choirs, or sound stages. It features a cardioid pickup pattern with excellent rear rejection to maximize gain before feedback and includes a steel hanger for positioning.

The unit operates on standard 9 through 52 Volt phantom power and connects via an included 30-foot cable terminating in a mini female XLR connector. The package also includes a PM5 power module adapter, a multistage windscreen, and the microphone element is protected by a rugged metal housing with a matte black finish.

What's inside

  • Product Description
  • Features
  • Architect's & Engineer's Specifications
  • CM12C Specifications

Specifications

Frequency Response50Hz - 18kHz
Dynamic Range112 dB
S/N ratio70 dB
Power Supply9~52V phantom supply

Frequently asked questions

What is the power requirement for the Samson CM12C?

The microphone operates on a standard 9 through 52 Volt phantom power supply.

What type of cable is included with the CM12C?

It includes a 30-foot cable terminating in a mini female XLR connector.
