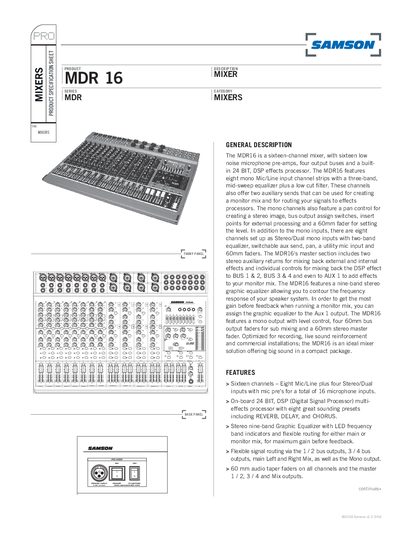

This document is a product specification sheet for the MDR 16 mixer.
The Samson MDR16 is a sixteen-channel mixer designed for recording, live sound reinforcement, and commercial installations. It features eight mono Mic/Line input channel strips with three-band equalization and four Stereo/Dual mono inputs. The unit includes an on-board 24-bit DSP multi-effects processor with eight presets and a stereo nine-band graphic equalizer.
| DSP Effects | 24 BIT, DSP multi-effects processor with eight presets |
|---|---|
| Graphic Equalizer | Stereo nine-band Graphic Equalizer |
| Frequency Response (Mic) | - 10 Hz - 30 kHz |
| THD (Mic/Line) | 0.02% |
| Equivalent Input Noise (Mic) | -128 dB |
| Maximum Voltage Gain (Mic to Main) | 72 dB |
| Power Requirement | 110V-240V, 50/60Hz |
| Dimensions (W x D x H) | 22.75" x 16.25" x 3.75" |
The frequency response from Mic to Main and Line to Main is -10 Hz to 30 kHz.
Yes, it features a 24-bit DSP processor with eight presets including Reverb, Delay, and Chorus.
The maximum voltage gain from Mic to Main is 72 dB.
