Samson Q7 Dynamic Microphone Product Specification Sheet

The Q7 super-cardioid dynamic microphone brings a high level of accuracy and audio performance to vocal miking applications thanks to its low mass, neodymium element.

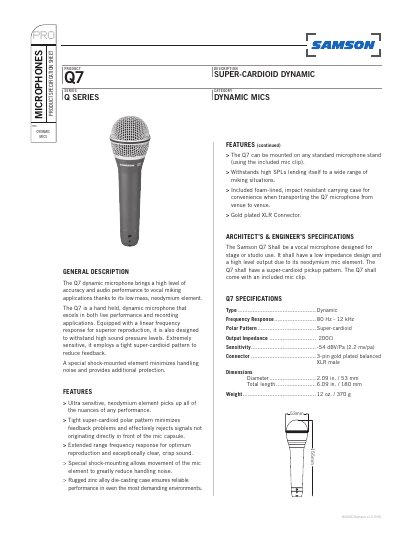

Samson Q7 Dynamic Microphone Product Specification Sheet - cover page
Brand
Samson
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
616 KB
Published
05 July, 2012
Updated
30 September, 2023
MD5 checksum
9234D72560113639C4AB5EE77F262486

About this manual

The Samson Q7 is a hand-held dynamic microphone designed for vocal applications in both live performance and recording environments. It features a low mass neodymium element for high sensitivity and accuracy, along with a linear frequency response for superior sound reproduction. The microphone is equipped with a tight super-cardioid polar pattern to minimize feedback and a special shock-mounted element to reduce handling noise.

What's inside

  • General Description
  • Features
  • Architect's & Engineer's Specifications
  • Q7 Specifications

Specifications

TypeDynamic
Frequency Response80 Hz - 12 kHz
Polar PatternSuper-cardioid
Output Impedance200Ω
Sensitivity-54 dBV/Pa (2.2 mv/pa)
Connector3-pin gold plated balanced XLR male
Dimensions (Diameter)2.09 in. / 53 mm
Dimensions (Total length)6.09 in. / 180 mm
Weight12 oz. / 370 g

Frequently asked questions

What is the Samson Q7 microphone designed for?

The Samson Q7 is a vocal microphone designed for stage or studio use.

How much does the Samson Q7 weigh?

The Samson Q7 weighs 12 oz. / 370 g.

What type of connector does the Samson Q7 have?

The microphone has a 3-pin gold plated balanced XLR male connector.
