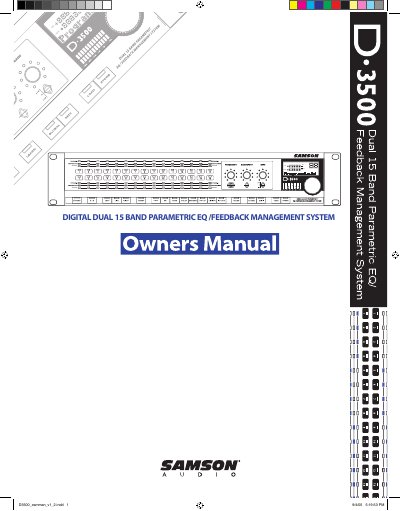

Samson Technologies D3500 Digital Dual 15 Band Parametric EQ User Manual

About this manual

The document serves as the user guide for the Samson Technologies D3500, detailing its features including a dual 15-band parametric EQ and feedback management capabilities. It covers safety instructions, front and rear panel layouts, and setup procedures.

The manual explains how to navigate the control interface, select inputs, and utilize various functions such as dynamic filters, delay, enhancer, limiter, and noise gate. It also provides guidance on system configurations for active or passive speakers and includes a wiring guide.

What's inside

• Introduction
• D3500 Features
• Controls and Functions
• Front Panel Layout
• Rear Panel Layout
• Setting-up the D3500
• Using the Filter Control Knobs
• Adding Dynamic Filters
• System Configurations
• D3500 Wiring Guide

Specifications

Frequently asked questions

What is the primary function of this device?

This unit functions as a digital dual 15 band parametric EQ and feedback management system.

Who should perform servicing on this equipment?

Servicing must be performed only by qualified personnel because there are no user serviceable parts inside.

What specific conditions require the unit to be unplugged?

You must unplug this unit during lightning storms or when it is unused for long periods of time.
