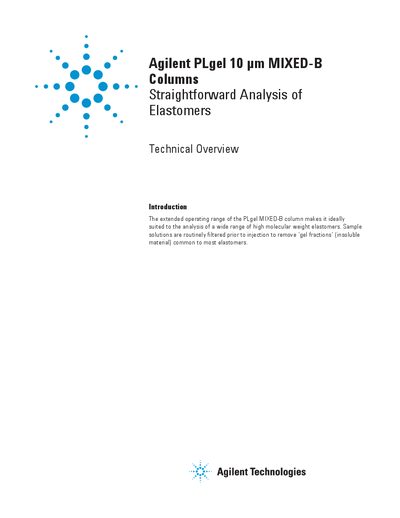

This document introduces the characteristics of Agilent PLgel 10 µm MIXED-B Columns for analyzing high molecular weight elastomers, including sample preparation methods, column models, mobile phase, injection volume, temperature and detection method.
The Agilent PLgel 10 μm MIXED-B columns are designed for the analysis of high molecular weight elastomers. They feature an extended operating range and are ideally suited for a wide variety of samples, provided that solutions are filtered to remove insoluble gel fractions prior to injection.
| Particle Size | 10 μm |
|---|---|
| Molecular Weight Range | up to 10 million |
| Column Dimensions | 300 x 7.5 mm |
| Recommended Eluent | THF |
| Flow Rate | 1.0 mL/min |
| Loading Amount | 0.2% w/v, 100 pL |
| Operating Temperature | 50 °C |
They are ideally suited to the analysis of a wide range of high molecular weight elastomers.
Sample solutions must be filtered to remove 'gel fractions' (insoluble material).
The Agilent PL-GPC 50 Plus Integrated GPC/SEC System is recommended.
