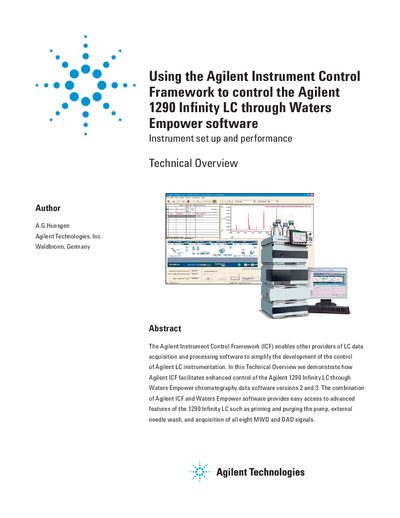

Agilent 1290 Infinity LC Control via Waters Empower Technical Overview

The Agilent Instrument Control Framework (ICF) enables other providers of LC data acquisition and processing software to simplify the development of the control of Agilent LC instrumentation. In this Technical Overview we demonstrate how Agilent ICF facilitates enhanced control of the Agilent 1290 Inﬁ nity LC through Waters Empower chromatography data software versions 2 and 3. The combination of Agilent ICF and Waters Empower software provides easy access to advanced features of the 1290 Inﬁ nity LC such as priming and purging the pump, external needle wash, and acquisition of all eight MWD and DAD signals.

Brand: Agilent
Document type: Other
Language: English
Pages: 8
File format: PDF
File size: 2.3 MB
Published: 05 July, 2012
Updated: 30 September, 2023
Model: 1290 Infinity LC
MD5 checksum: D5F06FD92C9F4329666711E8130B787D
PDF: Agilent 1290 Infinity LC Control via Waters Empower Technical Overview PDF

About this manual

The Agilent Instrument Control Framework (ICF) is a software component designed to simplify the development of control for Agilent liquid chromatography instrumentation. This technical overview specifically demonstrates how ICF facilitates enhanced control of the Agilent 1290 Infinity LC when used in combination with Waters Empower chromatography data software versions 2 and 3.

What's inside

Introduction
Prerequisites for the combination of Empower and ICF
Configuring the Agilent 1290 Infinity LC system
Creating an instrument method and a method set
Performance of the Agilent LC systems using Waters Empower data processing tools
Conclusion

Specifications

Software Version Requirement	Empower 2, feature release 3 or higher or Empower 3 software
Firmware Version Requirement	A.06.32 or B.06.32 or B.06.41 or higher
Operating System Requirement	Windows XP with service pack 3 or higher

Frequently asked questions

Which advanced features of the 1290 Infinity LC are supported by ICF and Empower?

Supported features include priming and purging the pump, external needle wash, and acquisition of all eight MWD and DAD signals.

What firmware versions are required for Agilent LC modules to work with ICF?

All Agilent LC modules must have firmware version A.06.32 or B.06.32 or B.06.41 or higher.

Which specific compounds were used for the precision measurement test?

The test used Uracil, phenol, methyl-, ethyl-, butyl-, and heptyl-paraben, toluene, and n,n-diethyl-m-toluamide.

What is the flow rate used in the chromatographic conditions for the precision measurement?

The flow rate was set to 0.8 mL/min.
