TDA1001B is a monolithic integrated circuit for suppressing interference and noise in FM mono and stereo receivers.

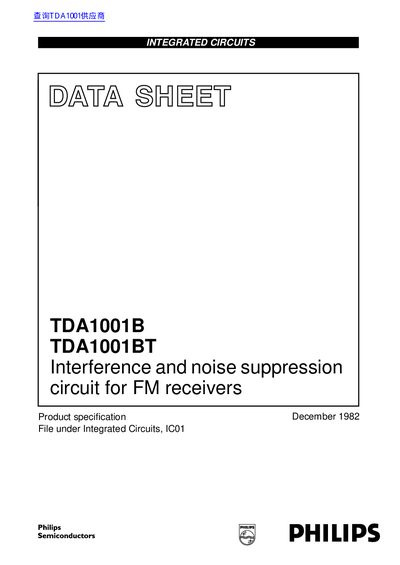

The document is a product specification datasheet from December 1982 for the Philips TDA1001B and TDA1001BT monolithic integrated circuits. These chips are designed to suppress interference and noise in FM mono and stereo receivers, featuring active low-pass and high-pass filters, an interference pulse detector, a noise detector, and a Schmitt trigger for generating suppression pulses.
| Supply voltage (typical) | 12 V |
|---|---|
| Supply current (typical) | 14 mA |
| Bandwidth | 70 kHz |
| Total harmonic distortion (typical) | 0,25 % |
| Operating ambient temperature range | -30 to +80 °C |
| Package type (TDA1001B) | 16-lead DIL; plastic (SOT38) |
| Package type (TDA1001BT) | 16-lead mini-pack; plastic (SO16; SOT109A) |
The typical supply voltage is 12 V.
Yes, it is designed for suppressing interference in FM mono and stereo receivers.
The device operates between -30 °C and +80 °C.
