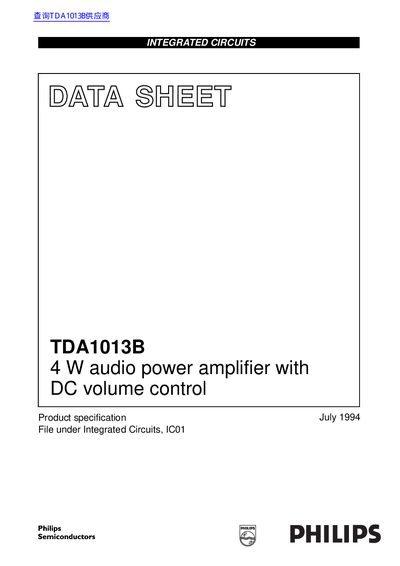

TDA1013B is an integrated audio amplifier circuit with DC volume control. It is encapsulated in a 9-lead single in-line (SIL) plastic package, making it ideal for mains and battery-fed apparatus such as television receivers and record players. The circuit has a wide supply voltage range, and the DC volume control stage has a logarithmic control characteristic with a range of more than 80 dB, controlled by a DC voltage variable between 2 and 6.5 V. The audio amplifier has a well-defined open-loop gain and a fixed integrated closed loop. It requires only a few external components and offers stability and performance.
The TDA1013B is an integrated audio amplifier circuit featuring DC volume control, encapsulated in a 9-lead single in-line (SIL) plastic package. It is designed for applications in mains and battery-fed apparatus such as television receivers and record players, offering a wide supply voltage range and a control range of more than 80 dB.
| Supply voltage | 10 to 40 V |
|---|---|
| Output power | 4.0 to 4.2 W |
| Total harmonic distortion | 0.15 to 1.0 % |
| Gain control range | 80 to 90 dB |
| Package type | 9-lead SIL; plastic (SOT110B) |
| Storage temperature range | -55 to +150 °C |
The supply voltage range is from 10 V to 40 V.
The output power is 4.0 to 4.2 W when THD is 10% and RL is 8 Ohms.
The gain control range is 80 to 90 dB.
