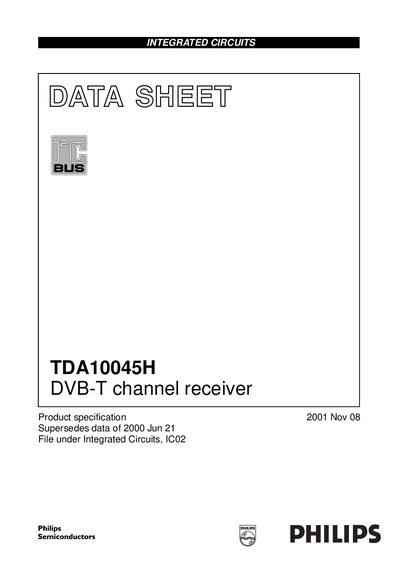

This data sheet introduces the features and characteristics of the TDA10045H DVB-T channel receiver
The document is a product specification data sheet for the TDA10045H integrated circuit. It details the device's features as a 2 and 8 kbytes Coded Orthogonal Frequency Division Multiplexer (COFDM) demodulator fully compliant with ETSI 300-744 standards.
The chip integrates a Digital Signal Processor (DSP), a Phase-Locked Loop (PLL), and a 10-bit Analog-to-Digital Converter (ADC). It is designed to perform all COFDM demodulation tasks from the IF signal to the MPEG-2 transport stream, supporting hierarchical modes and automatic transmission parameter detection.
The device supports 2 and 8 kbytes Coded Orthogonal Frequency Division Multiplexer (COFDM) demodulation.
The digital supply voltage for the core operates at a typical level of 1.8 V.
