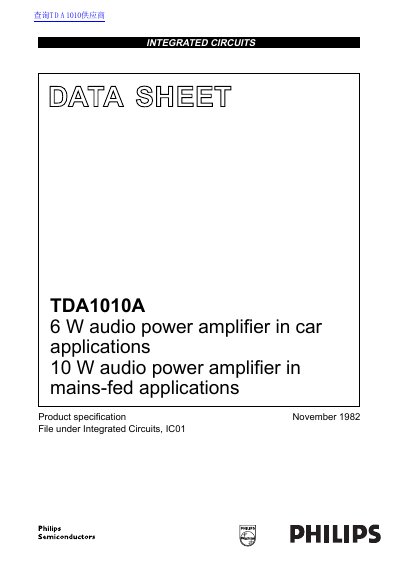

TDA1010A is a monolithic integrated audio amplifier circuit in a 9-lead single in-line (SIL) plastic package produced by Philips Semiconductors. It can be used as a 6 W car radio amplifier for use with 4 Ω and 2 Ω load impedances, or as a record player and tape recorder with output powers up to 10 W.
The Philips TDA1010A is a monolithic integrated class-B audio amplifier circuit housed in a 9-lead single in-line (SIL) plastic package. It is primarily developed as a 6 W car radio amplifier designed for use with 4 Ω and 2 Ω load impedances, though its wide supply voltage range allows it to function effectively in record players and tape recorders requiring up to 10 W output power.
| Supply voltage range | 6 to 24 V |
|---|---|
| Repetitive peak output current | max. 3 A |
| Total harmonic distortion at Pp = 1 W | typ. 0,2 % |
| Operating ambient temperature | -25 to +150 °C |
| Output power (typical) at Vp=14.4V, RL=4Ω | 6.2 W |
| Frequency response (-3 dB) | 80 Hz to 15 kHz |
It is primarily developed as a car radio amplifier for use with 4 Ω and 2 Ω load impedances.
The maximum supply voltage is 24 V.
The maximum operating ambient temperature is 150 °C.
The typical output power is 9 W.
