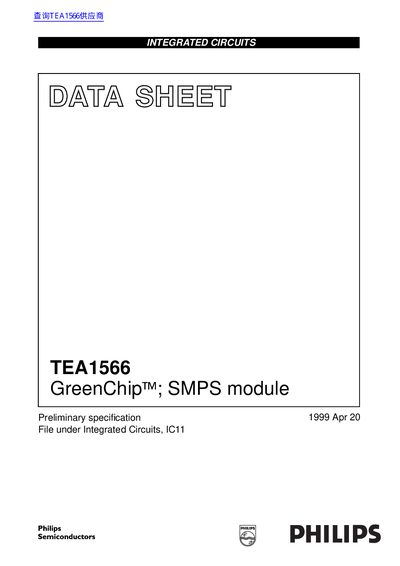

TEA1566 is an integrated circuit with features such as high integration and low power consumption, suitable for offline power supply applications.
The Philips TEA1566 GreenChip is a monolithic high-voltage integrated circuit designed for off-line switched-mode power supply (SMPS) applications ranging from 90 to 276 VAC. It combines analog and digital circuits to implement control functions, including an integrated 600 V MOSFET, a 5% accurate oscillator, and comprehensive fault protection features such as over-voltage, over-current, and over-temperature protection. The device supports both Buck and flyback topologies and interfaces with both primary and secondary side feedback.
| Input Voltage Range | 90 to 276 VAC |
|---|---|
| Integrated MOSFET Voltage | 600 V |
| Oscillator Accuracy | 5% |
| Off-mode Power Consumption | <100 mW |
| Burst Mode Stand-by Power | <2 W |
| Maximum Duty Cycle | 80% |
| Oscillator Frequency Range | 50 to 100 kHz |
| Package Type | SIL9P or DBSSP |
The device includes demagnetization protection, cycle by cycle current limitation, over voltage protection, over temperature protection, and safe-restart mode.
The IC is usable in both Buck and flyback topology applications.
