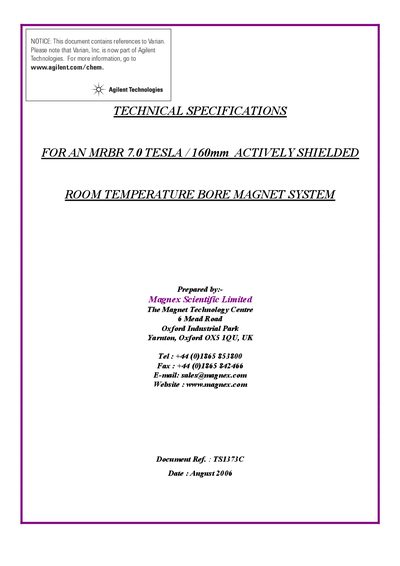

This document introduces the technical specifications of MRBR 7.0 TESLA / 160mm ACTIVELY SHIELDED ROOM TEMPERATURE BORE MAGNET SYSTEM.
This document provides technical specifications for the Magnex MRBR 7.0 Tesla actively shielded room temperature bore magnet system. The system features a multi-coil superconducting magnet housed in a low-loss cryostat, designed for high field homogeneity and stability. Field shimming is achieved through a combination of superconducting shim coils and passive shim pieces.
| Central field | 7.0 Tesla |
|---|---|
| Field stability | < 0.05 ppm/hour |
| Operating current | 252 Amps |
| Time to energise | Less than 120 minutes |
| Helium consumption | 10-15 litres |
| Room temperature clear bore | 160mm |
| Cryostat length | 1012mm |
| Cryostat weight | 1550kg |
| Minimum ceiling height | 3130mm |
| Emergency discharge time | 30 seconds |
With superconducting and passive shimming, homogeneity is less than 8ppm p-p over 8.0cm dsv.
It takes less than 120 minutes to energise the magnet to full field.
