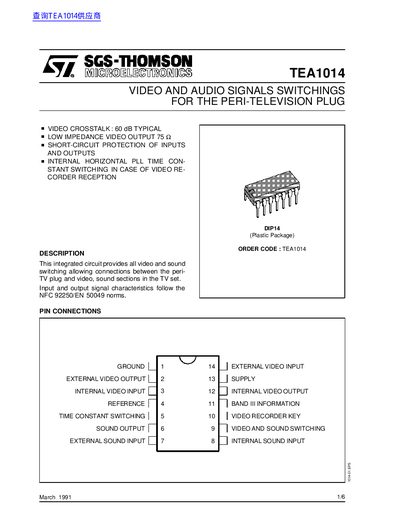

TEA1014 is a video and audio signal switch that allows connections between the TV set's peri-TV plug and video and audio sections. Input and output signal characteristics follow the NFC 92250/EN 50049 norms.
The TEA1014 is an integrated circuit designed to provide all video and sound switching required for connections between the peritel plug and the video and sound sections of a TV set. It ensures input and output signal characteristics comply with NFC 92250/EN 50049 norms. The device includes features such as short-circuit protection for inputs and outputs, low impedance video output, and internal horizontal PLL time constant switching for video recorder reception.
| Operating Temperature Range | 0 to 70 °C |
|---|---|
| Storage Temperature Range | -40 to +150 °C |
| Video Bandwidth | 6 MHz |
| Audio Bandwidth | 16 kHz |
| Video Crosstalk | 60 dB typical |
| Video Output Impedance | 75 Ω |
| Package Type | 14 Pins Plastic DIP |
It provides all video and sound switching allowing connections between the peritel plug and video, sound sections in the TV set.
Yes, it includes short-circuit protection for both inputs and outputs.
The typical video crosstalk level is 60 dB.
